【SOULD OUT !!】 Surgical light

※If you want to enlarge the image, please click on the image with the mouse.

GENRE
MAKER	RIMSA
MODEL NO.	Pentaled 63N
DATE
CONDITION
CONFIGURATION
PRICE	Contact Us
MANAGE NO.	DC14058

SPECIFICATION：

RIMSA
Pentaled 63N
Year of manufacture 2014

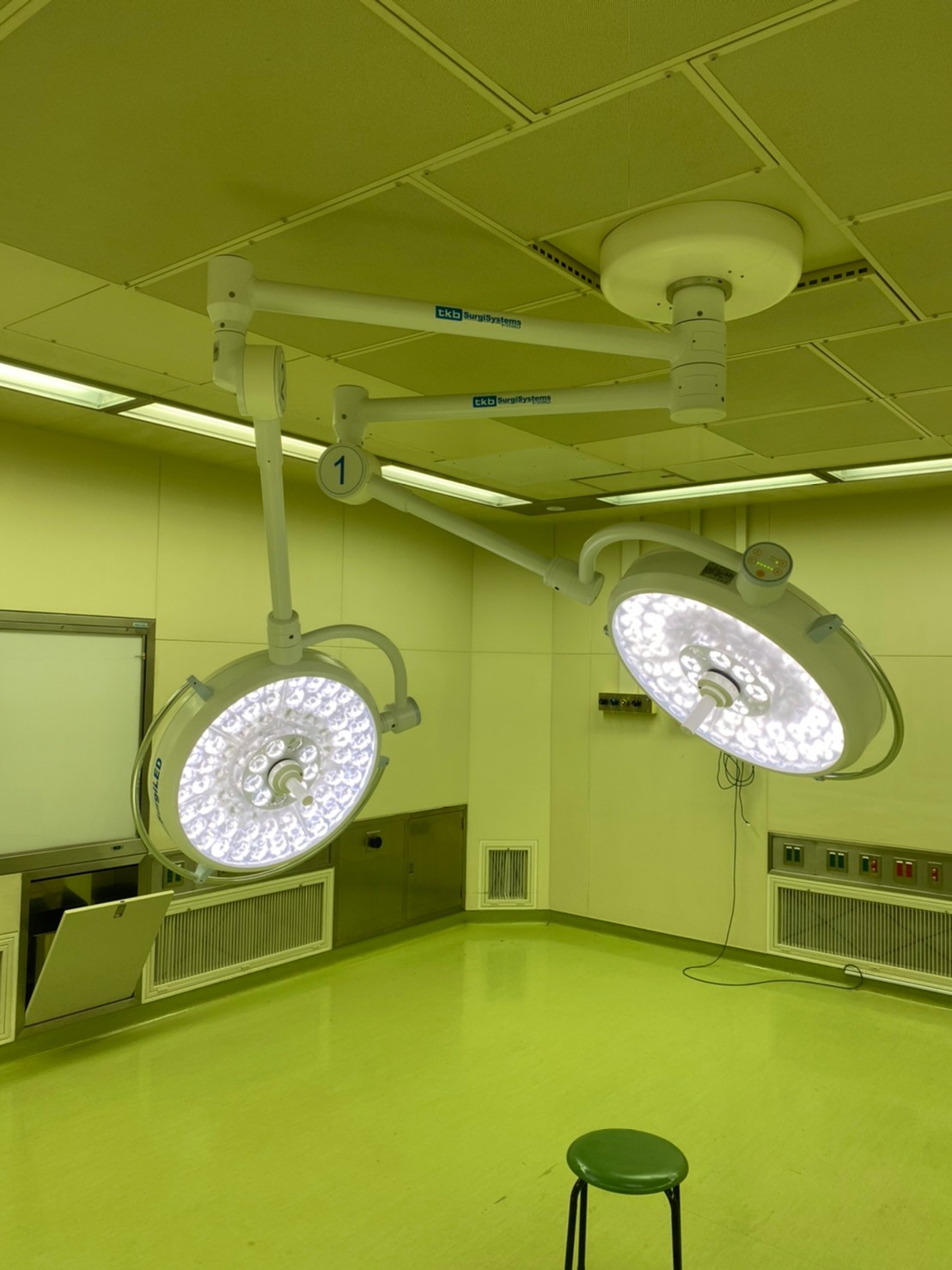

The Pentaled 63N operating lamp is composed of 72 elliptical reflectors divided into 8 modules of 9 Leds each and the focusing of the modules takes place mechanically by rotating the handle. Manual focusing within the sterile area ensures precise and immediate control of the light field. The multiplicity of light sources and the reflected light system make it possible to achieve the scialytic effect, for a three-dimensional illumination without shadows. Its peculiarities are:

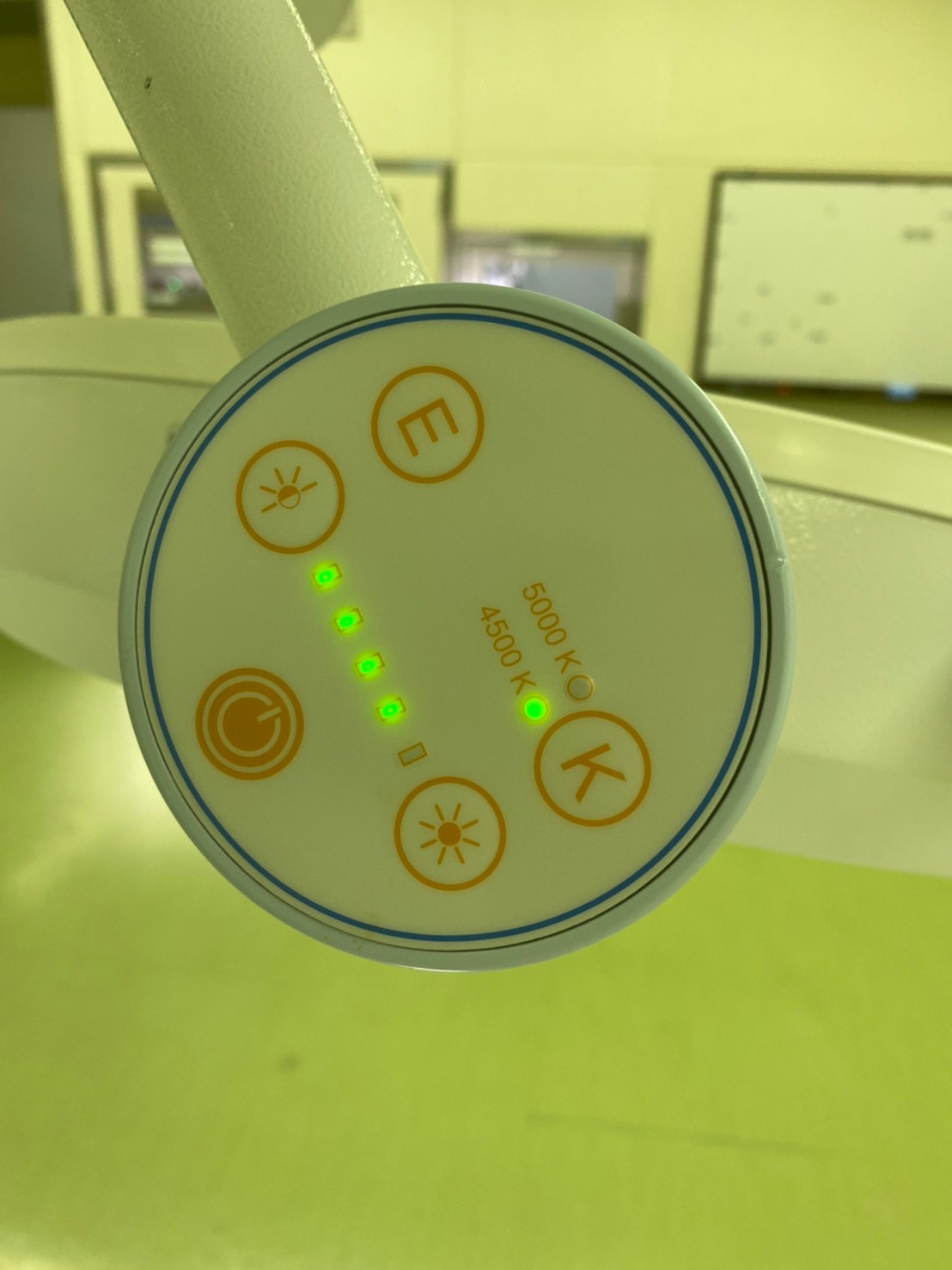

– Ability to select two different color temperatures (4,500 Thus. K – 5,000 Thus. K)
– Light intensity adjustment up to 160 Klx
– Endoled function with color selection (support light for endoscopy operations)
Specification
Light intensity at 1 m distance (Ec) 160.000 lux
Light head diameter 63 cm
Color temperature 2 selections: 4.500 - 5.000K
Color rendering index (CRI) 96 Ra
Diameter adjustment Manual
d10 light field diameter where illuminance reached 10% of Ec 260 mm
Light field diameter adjustable from-to 160 - 300 mm
Depth of illumination IEC 60601-2-41 (L1+L2) at 60% 56 cm
Depth of illumination IEC 60601-2-41 (L1+L2) at 20% 108 cm
Total radiated energy Ee where the illuminance reaches max level 580 W/m2
Ratio between radiated energy Ee and illuminance Ec 3,68
Average led life > 60,000 hours
20 - 100 % Control of the illuminance
59 W - 70 VA Electrical absorption
