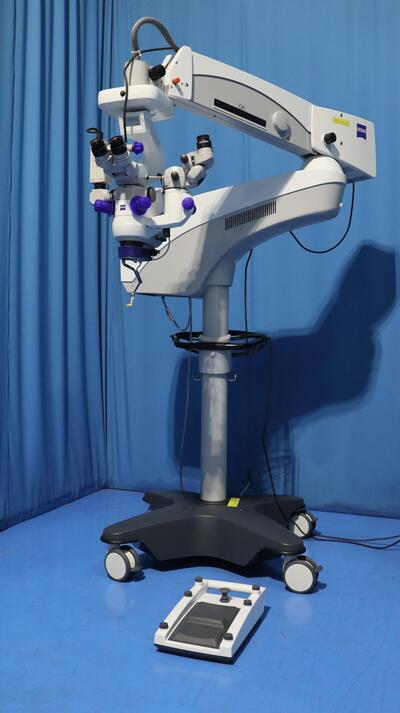

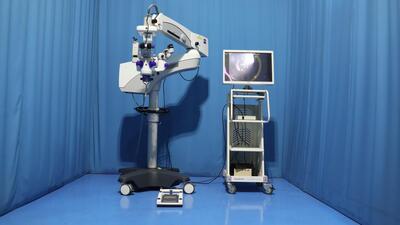

PRODUCT DETAIL 16349 / Operation Room Microscope / OPMI Lumera 700

【SOULD OUT !!】 Operation Room Microscope

※If you want to enlarge the image, please click on the image with the mouse.

GENRE	Surgical Microscope

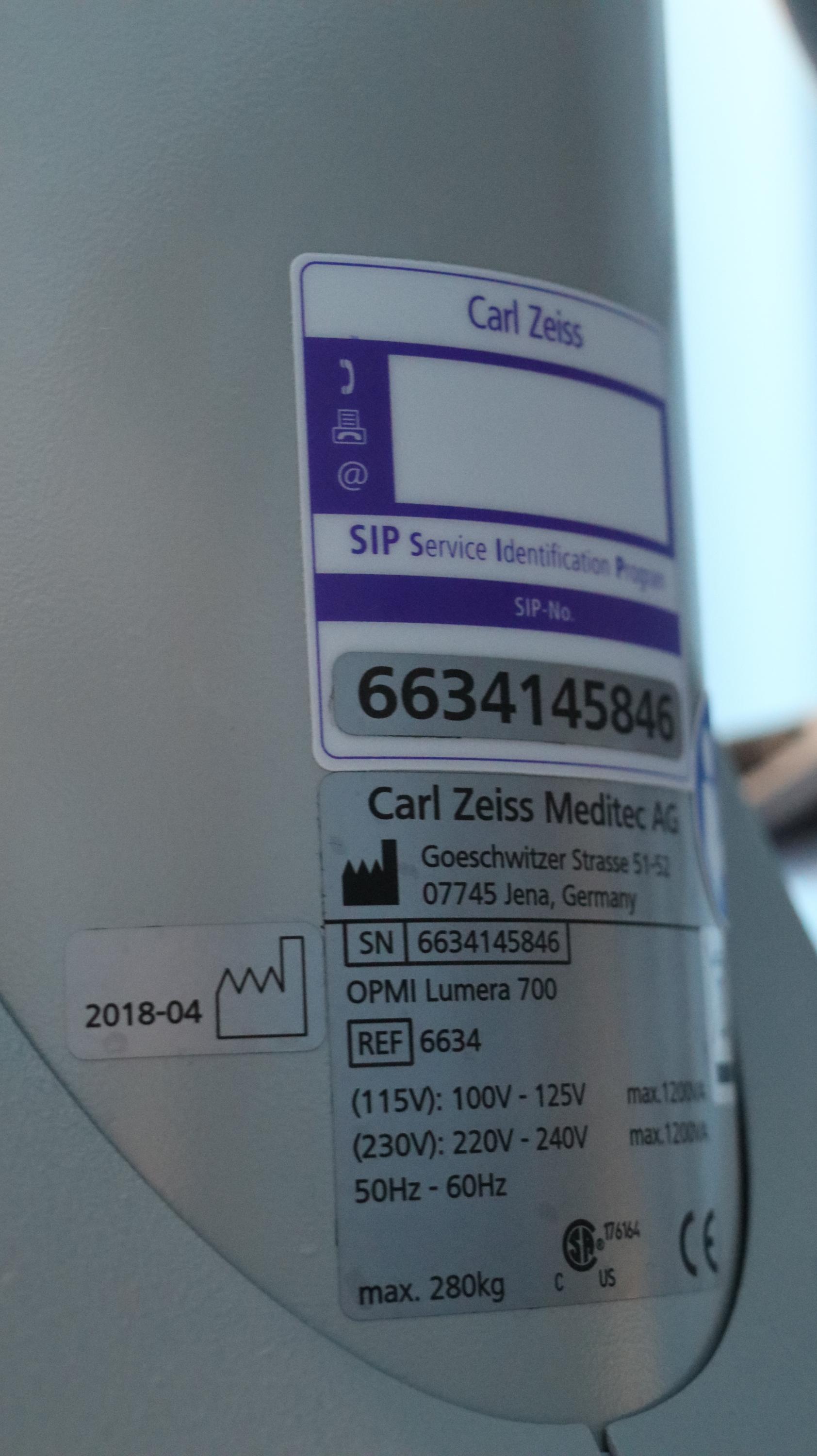

MAKER	Carl Zeiss Meditec AG
MODEL NO.	OPMI Lumera 700
DATE	2018
CONDITION
CONFIGURATION
PRICE	Contact Us
MANAGE NO.	DC16349

SPECIFICATION：

ZEISS

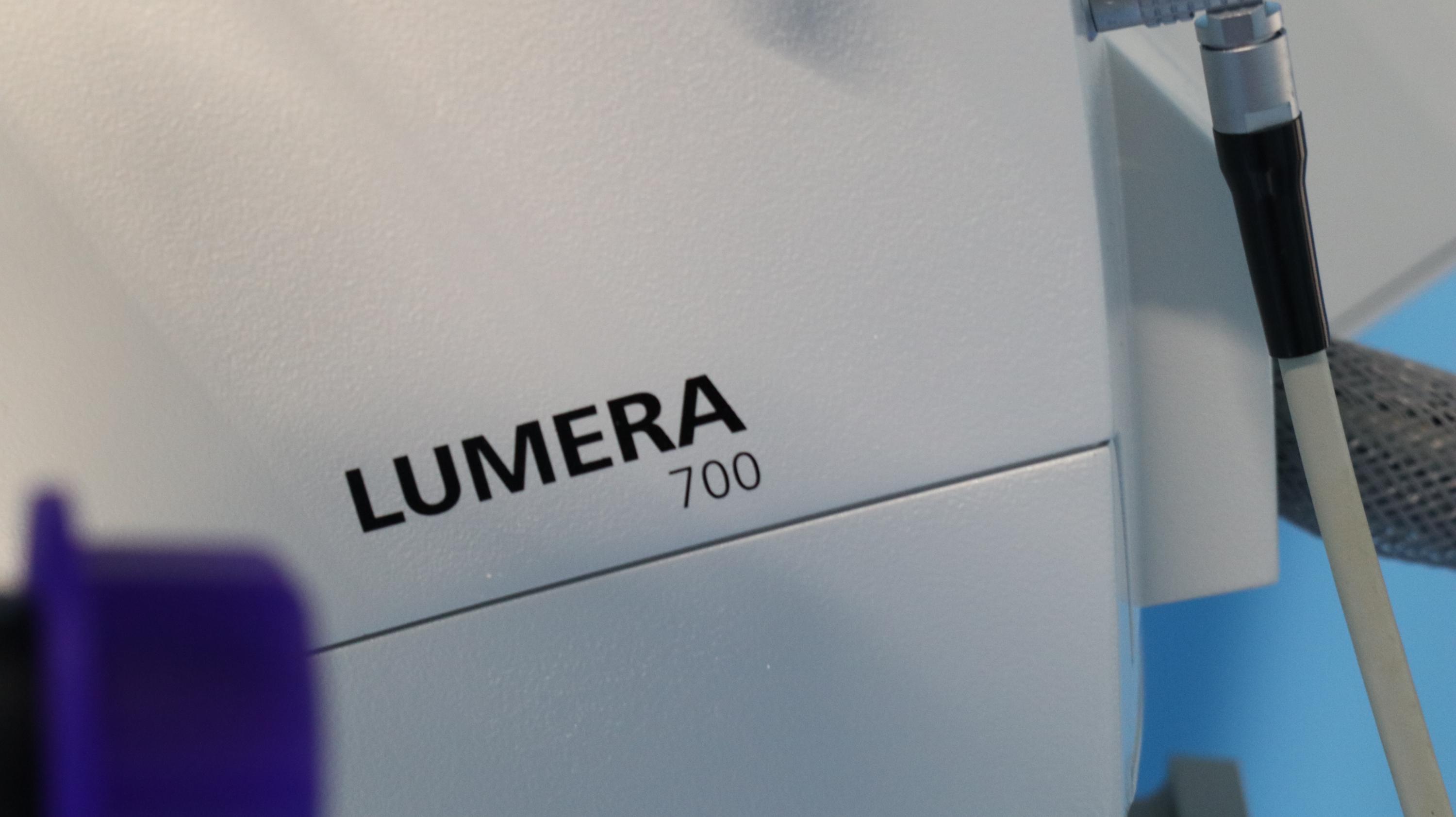

OPMI LUMERA 700
Year of manufacture 2018
Features
-	Motorized zoom system with apochromatic lens, zoom ratio 1:6
-	Magnification factor = 0.4 x – 2.4 x
-	Focusing: electric / motorized, focus range: 70 mm
-	Objective lens: f = 200 mm (optionally also f = 175 mm or f = 225 mm with support ring)

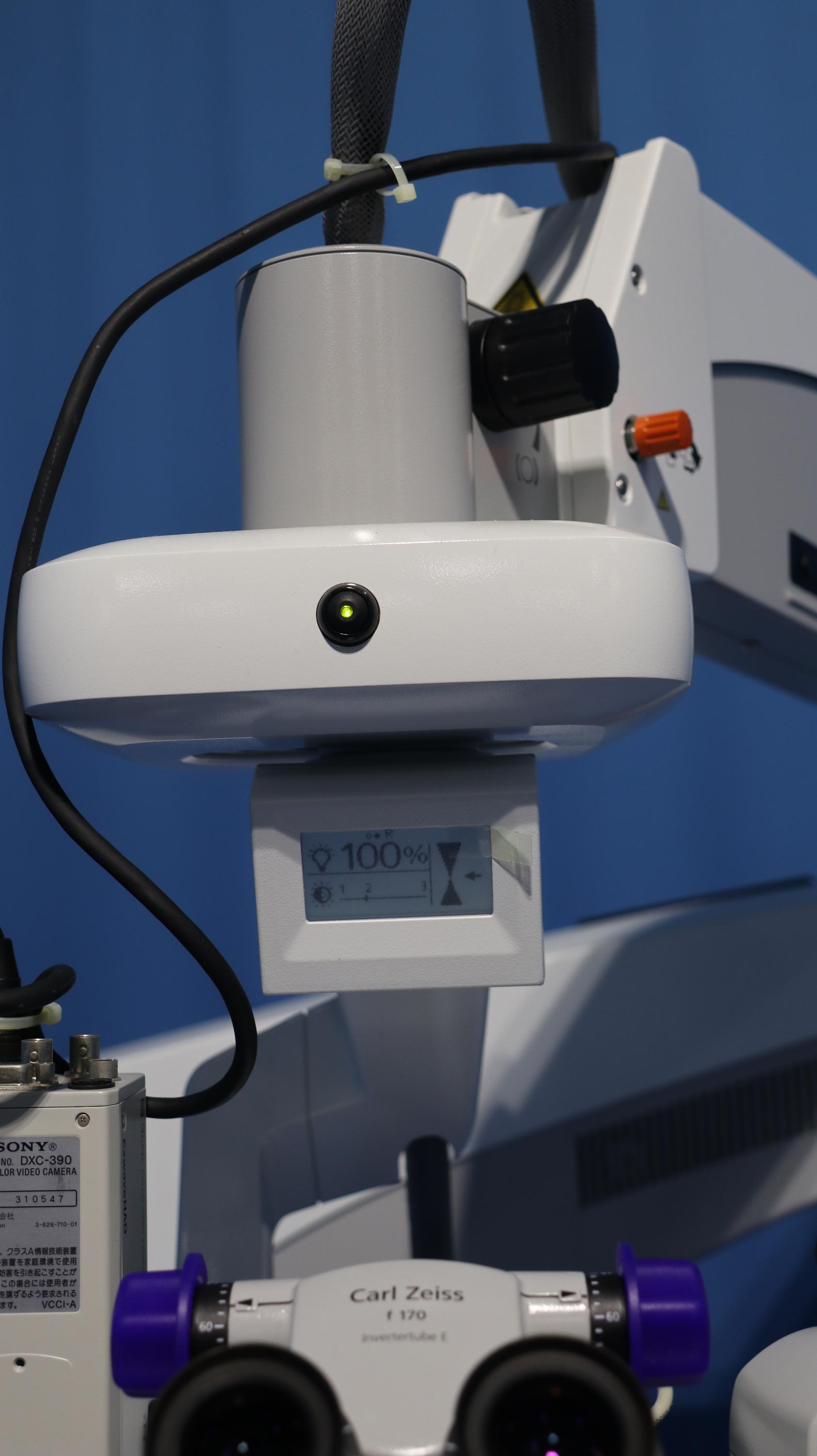

-	Binocular tube: Invertertube E (optionally also Invertertube, 180° swivel tube,
f = 170 mm, inclined tube, f = 170 mm)
-	Wide-angle eyepiece 10 x (optionally also 12.5 x)
-	SCI: Coaxial and full-field illumination
-	Fiber-optic illumination Superlux® Eye:
-	Xenon short arc reflector lamp with HaMode filter
• Backup lamp in lamp housing, can be slid into position manually
-	LED fiber-optic illumination:
• Near-daylight color temperature
• 50,000 hour lifetime at 50% light intensity
• HaMode filter
• 25% gray filter
-	For all light sources:
• Blue blocking filter
• Optional: Fluorescence filter

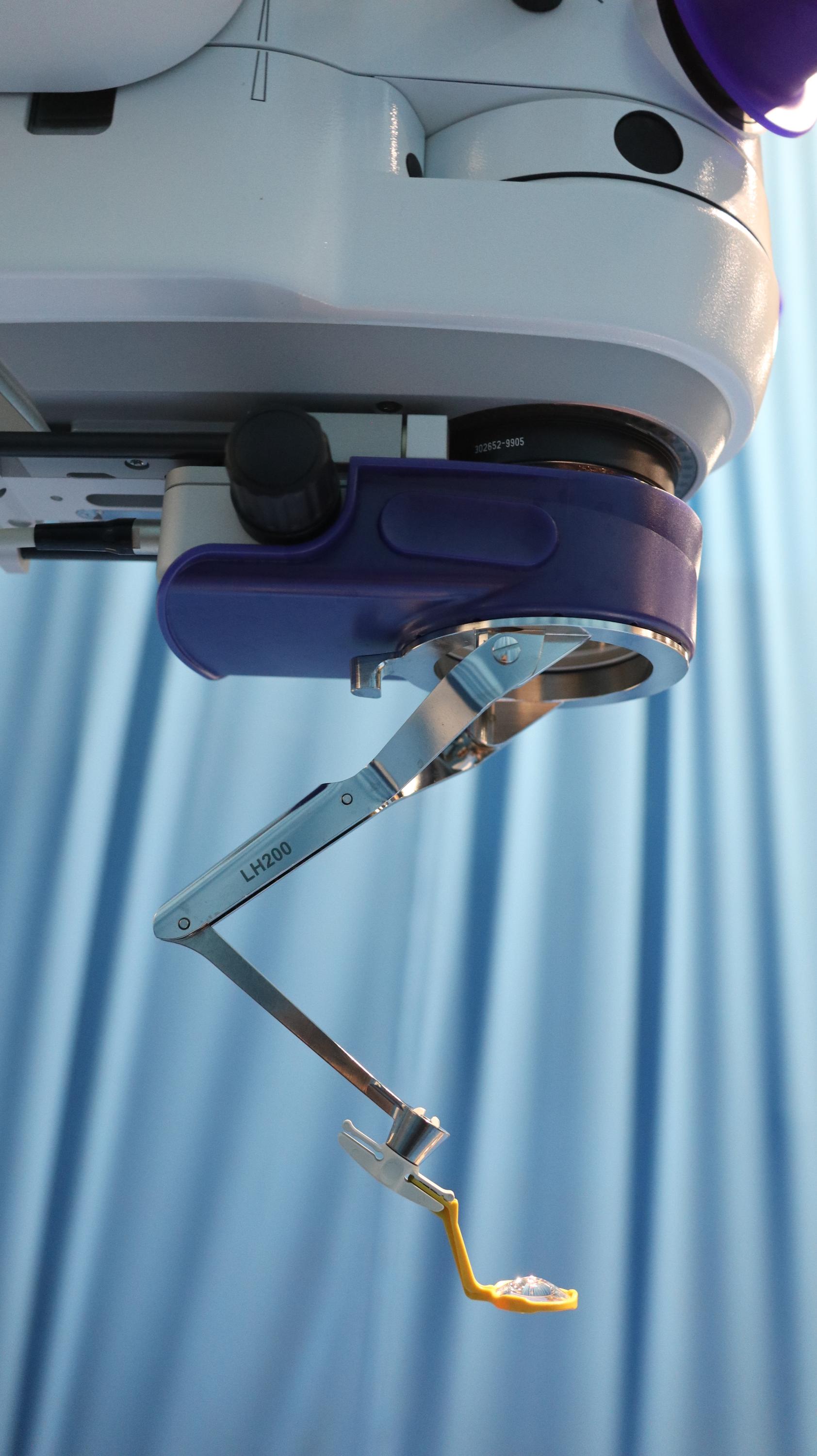

ZEISS RESIGHT family (Resight 700)
-	Mechanical data Focus range with LH175 lens holder: 31 mm (position of intermediate image)

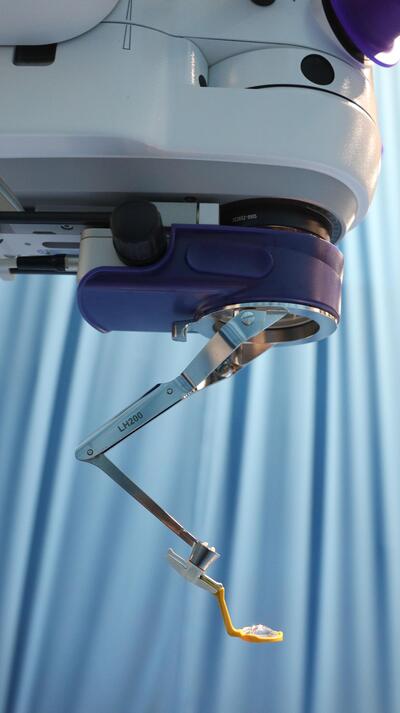

-	Focus range with LH200 lens holder: 38 mm (position of intermediate image)
-	Rotation angle of lens revolver and holder: 0°–360°
-	Lenses included 60D, 128D

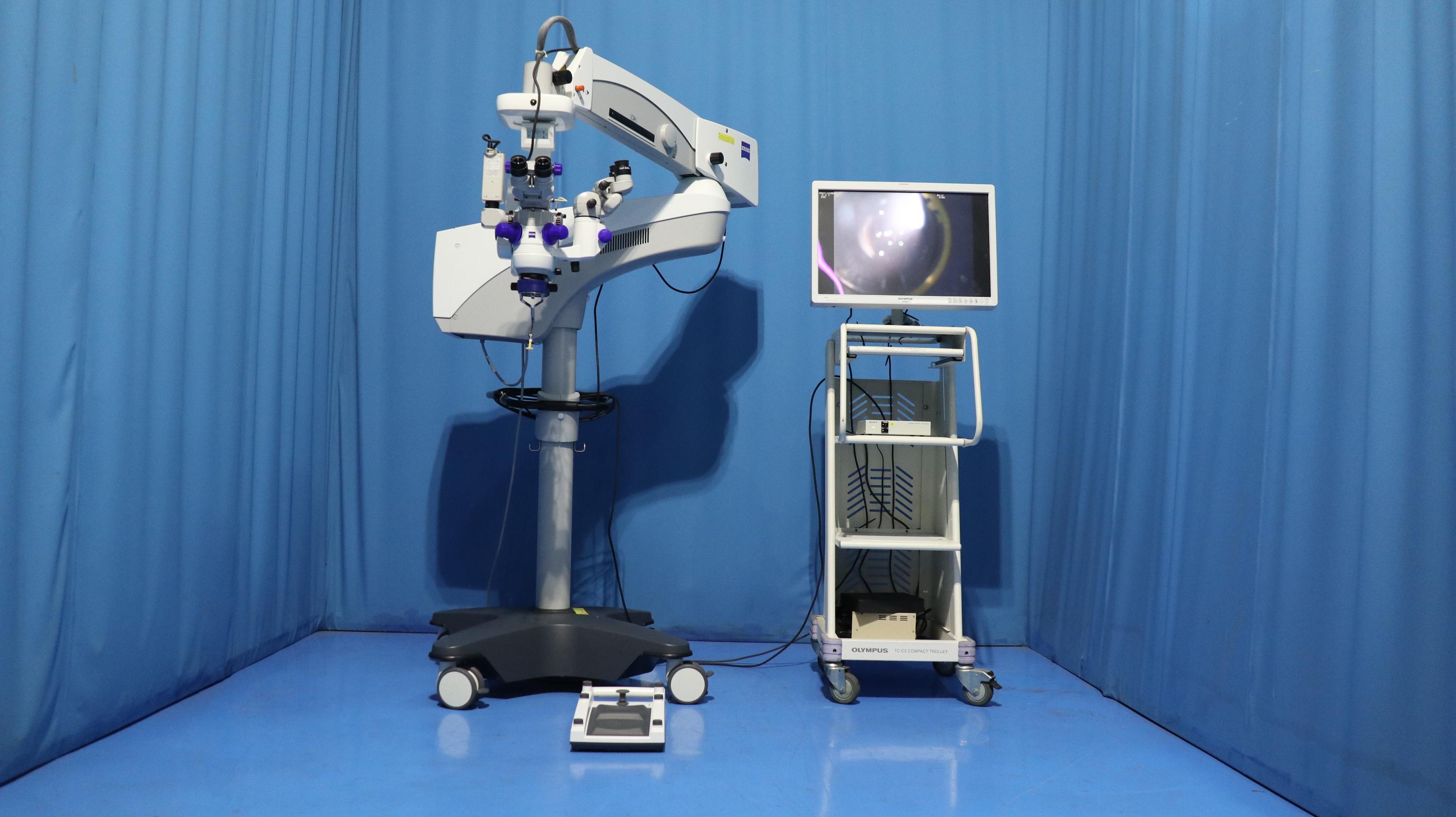

Accessories
-	Resight 700 (YOM 2018)

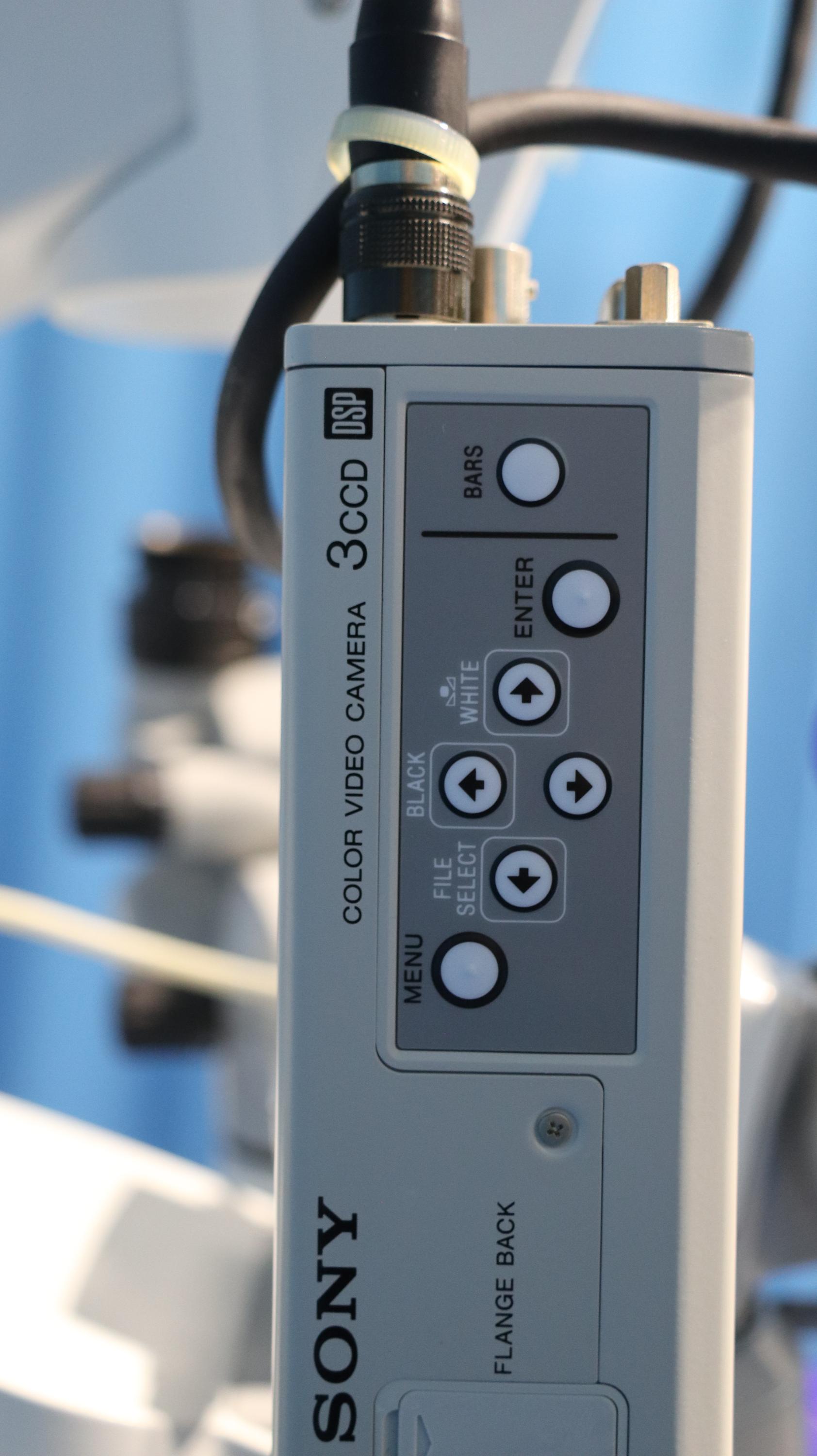

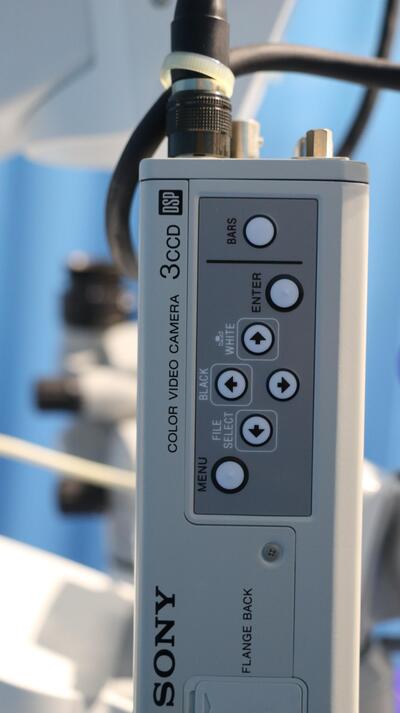

-	SONY 3CCD Camera Head

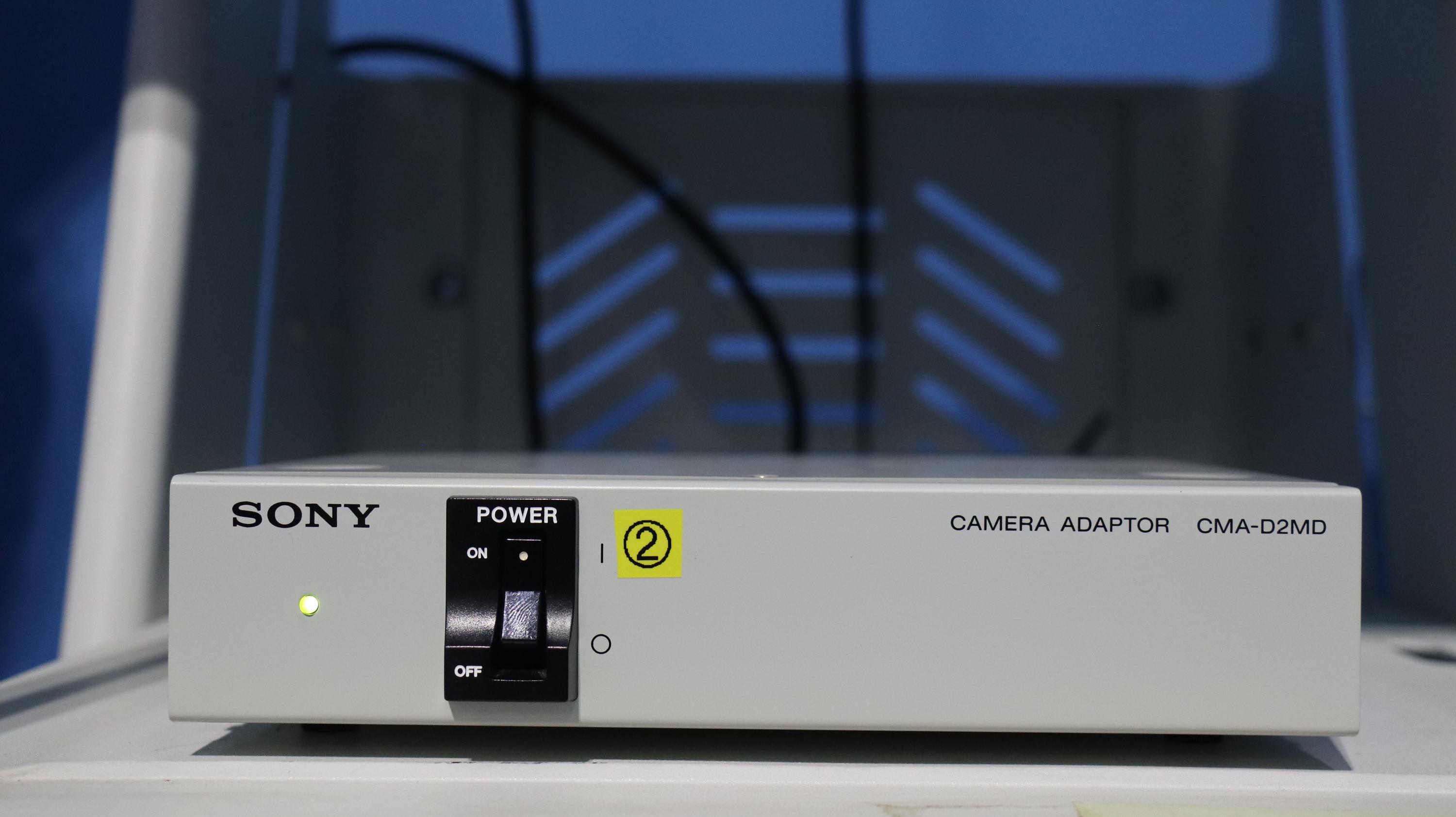

-   SONY CMA-D2MD Camera Adaptor

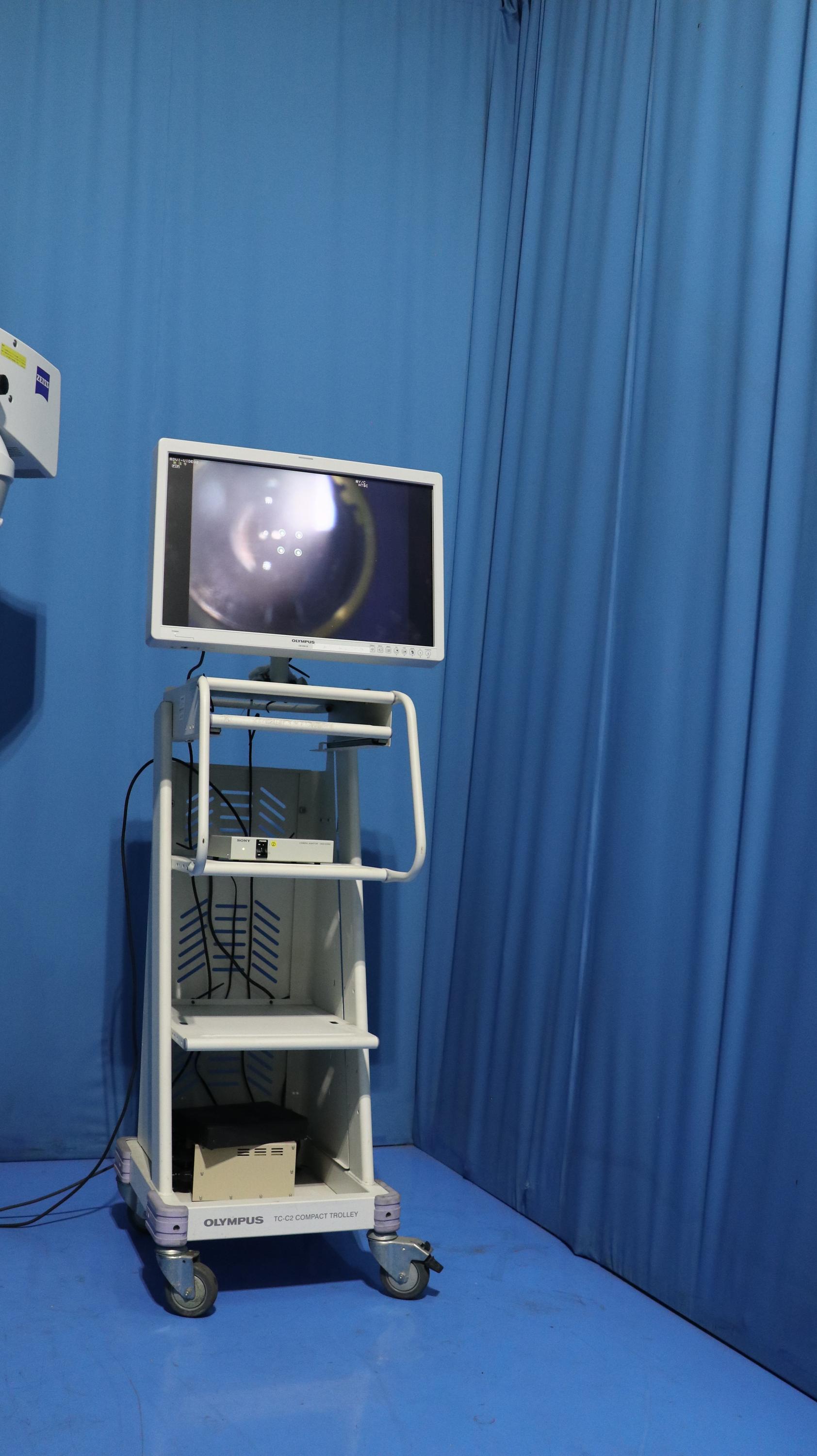

-   OLYMPUS OEV-261H
-   Wireless foot pedal
-   Alcon PUREPOINT 532mn Filter Lens (X2) (YOM 2018)

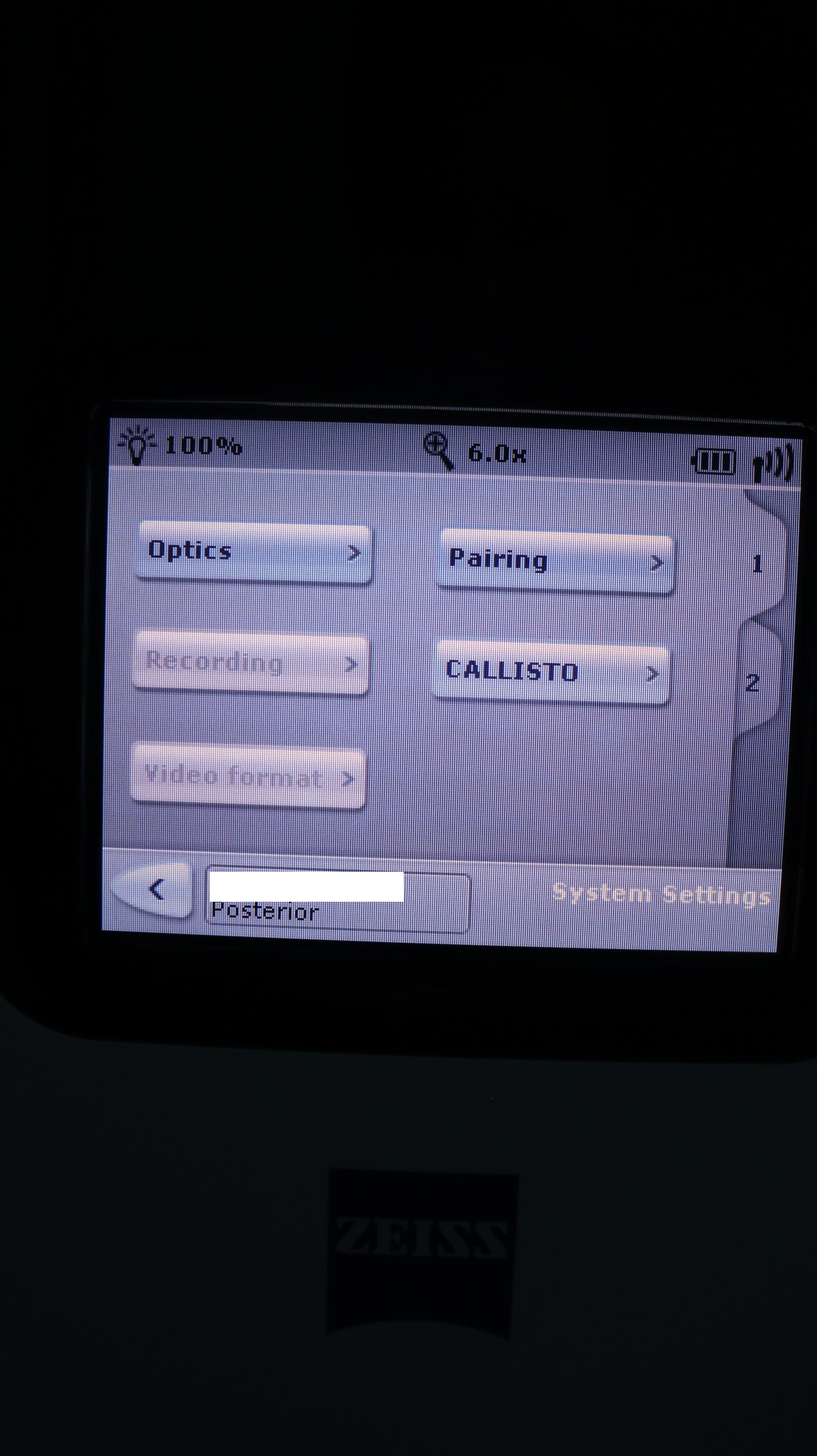

Software version 2.5
Excellent condition
